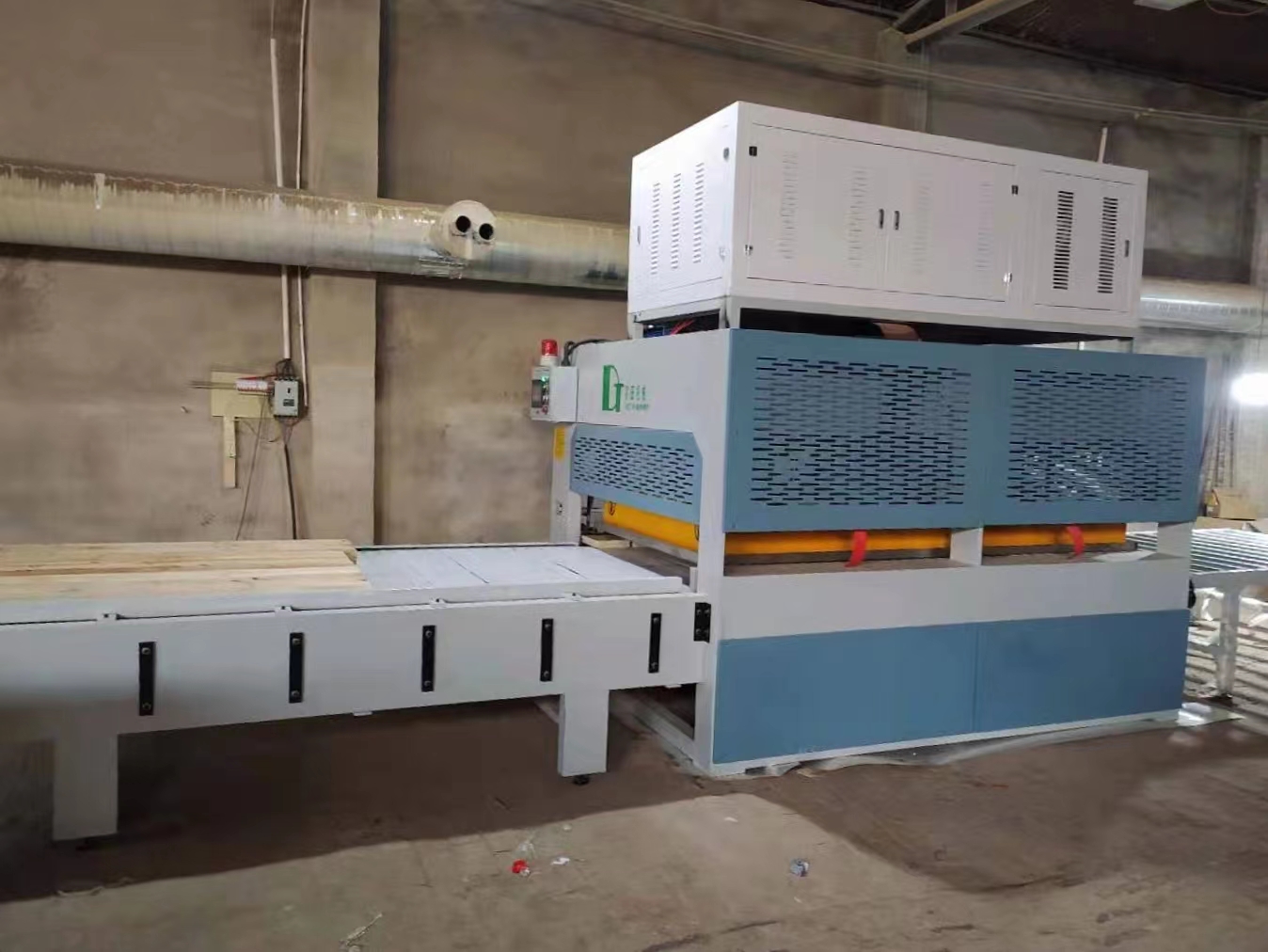

High frequency conveyor belt board jointing machine
Release Time：2021-08-30
High frequency splicing machine, also known as high frequency splicing machine, is a material processing equipment commonly used in the wood industry. Splicing equipment splices smaller volumes of wood (veneer, bamboo board) into larger volumes of materials. Compared with cold jointing and other heating methods, the equipment has the advantages of high automation, wide range of adaptation and low cost of jointing.
Scope of application High frequency splicing machine is suitable for finger splicing board, integrated splicing board, solid wood edge sealing, L-shaped door line, etc. PLC and touch screen program control, easy to operate, easy to understand. The program design is diversified and widely applicable.
Equipment characteristics
1 PLC automatic control, high degree of automation.
2 the conveyor belt automatically sends material, can splice infinite long plate, saving time and labor.
3 the whole machine mainly adopts imported components, reliable quality, strict inspection and debugging, stable operation.

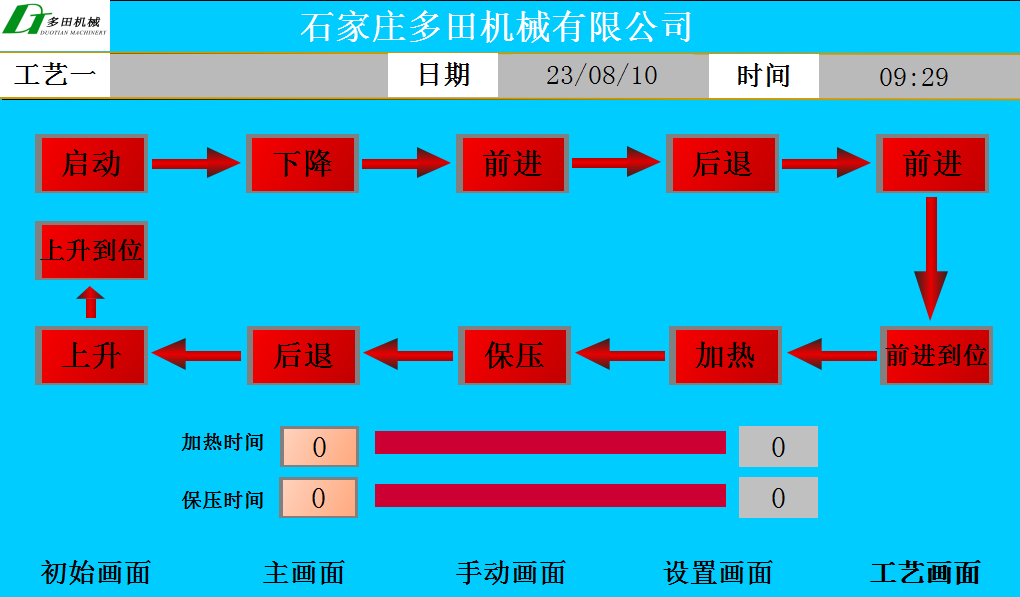

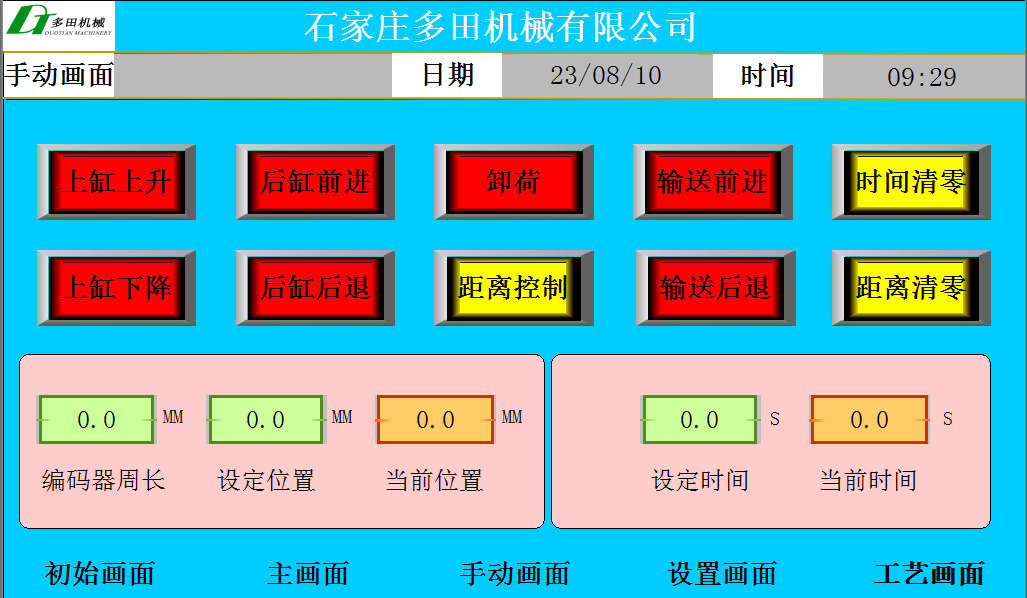

Intelligent operating system
Parameter
| Model | GPB-2513-DT-50L | GPB-3213-DT-60L | GPB-4213-DT-80L | GPB-6213-DT-120L |
| Minimum Gluing size (mm) |
2500*1300 | 3200*1300 | 4200*1300 | 6200*1300 |
| Total pressure (T) | 50/60/85/120 | |||
| Control mode | PLC touch screen program automatic control | |||
| Frequency (MHZ) | 6.78 | |||
| Maximum Gluing Thickness (mm) |
≦60 | |||
| HF output power (KW) | 20 | 20 | 30 | 50 |
| ***** can be customized according to different needs of customers. * * * * | ||||
